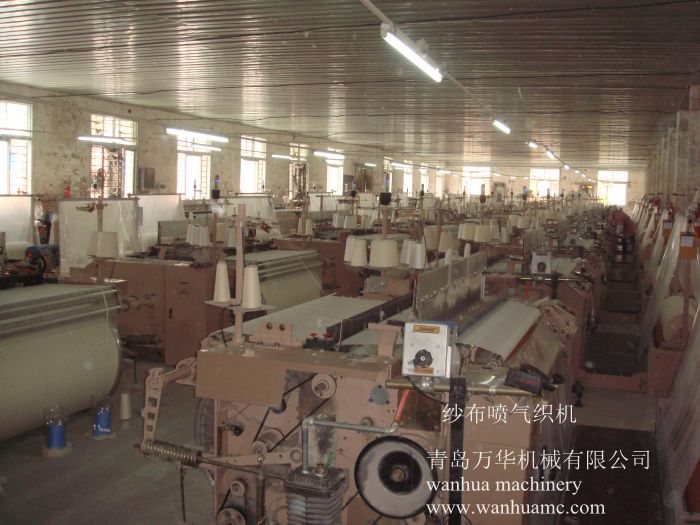

WH708-I medical gauze air jet loom is developed through variety of advanced technology. Now this loom avoided the shortcomings of the current shuttle loom such as: low efficiency and too much process, repair rate high, and high labor. It is east to weave 21-40 s skim yarn (free sizing).
The machine adopts reinforced wall and beams, effectively enhance the stability of the loom. This Loom owned high degree of automation, The LCD can show the efficiency and capacity of each class clearly. It is easy to set down the length of the cloth. It can be equipped the folding device.
The machine adopts electronic feeder single nozzle, Improve the production efficiency, and it is easy to save the weft yarn. Main drive components are in oil-bath type lubrication, reduced the maintenance cost. Oil-free conjoined two pump independent gas supply device, it is easy to save energy.
In addition, this machine can use outside take-up device, reduced the work procedure, no need cloth inspection, then it reduced the labor costs.
Main dimensions and specifications:
1. Reed space: 135、150、190 cm
2. Feeder: Single nozzle electronic feeder
3. Power: 1.1KW-1.8KW
4. Weft insertion: single steel tube nozzle, piped shaped reed
5. Shedding: crank opening with 2 pc heald frame
6. Let-off: passive or mechanical
7. Take-up: inside or outside take-up
8. Beating: 4-linkage beating-up
9. Selvage: smooth or rough selvage
10. Speed: 400-500 RPM
11. Weight: 1.3-1.8T
12. Dimensions: 135 type 3050MM*1540MM
150 type 3200MM*1540MM
190 type 3600MM*1540MM
out side take-up width 1300MM
|
